Krystals Cables | Krystal Installation Mic Cable 24/.20 mm * 2 Core ATC
Krystal 18 AWG Installation Mic Cable
- Installation Mic Cable
- 24/.20 MM X 2 CORE ATC SHIELDED MIC CABLE
- 100 meter reel

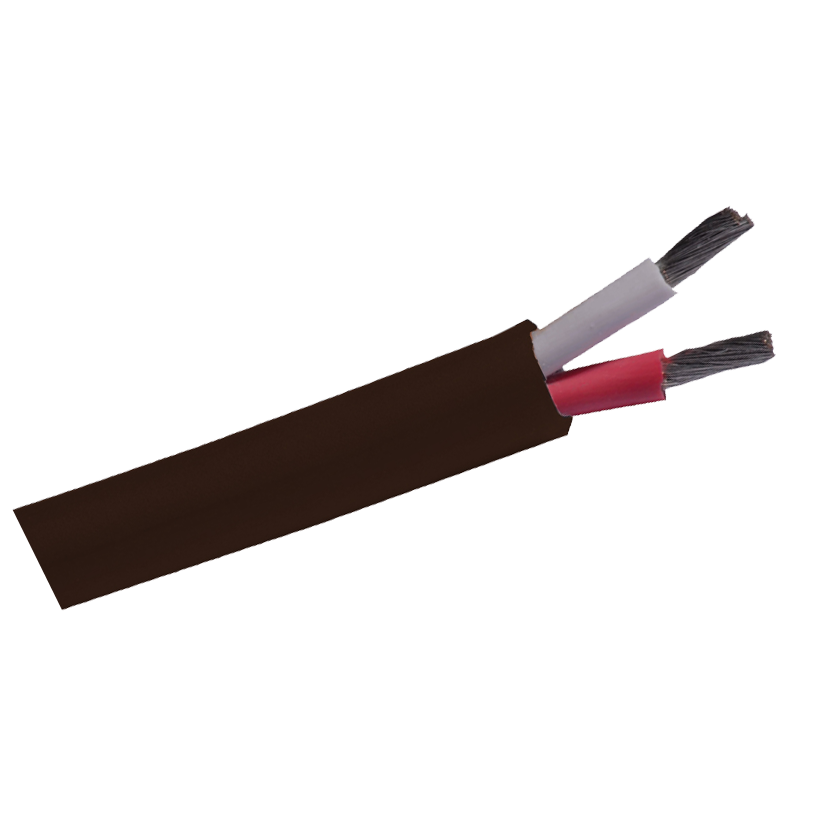

Krystals Cables | Krystal 18 AWG Installation Mic Cable | 24/.20 mm * 2 Core ATC
- Installation Mic Cable
- 24/.20 MM X 2 CORE ATC SHIELDED MIC CABLE
- 100 meter reel
Specification
| Cross sec Area |
: 0.50 sqmm |
| No of Strands |
: 16 |
| Cond. Type |
: ATC |
| Insulation Type |
: PVC |
| Filler |
: PVC Dummy + Mylar Tape |
| Shield |
: 88 % ATC Braid |
| Over all Dia |
: 6.00 mm |
| DCR AT 20 °CConductorShield |
: 40.10Ω / KM: 22.90Ω / KM |
| CapacitanceConductor Shield |
: 33 PF / Feet: 58 Pf / feet |
